Call for Pricing

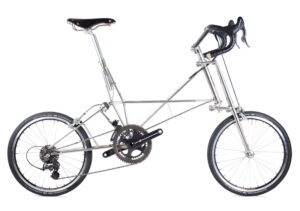

For those who love to ride… FAST. The Moulton NS SPEED is the lightest in the New Series range. Advanced Moulton Flexitor® and Hydrolastic® suspension systems keep the tyres on the tarmac and absorb shock, increasing comfort and speed.
Features
| Wheel Size | 20″ |
| Frame | ‘Shot-in’ multi-tube construction, with seat tube ‘Pylon’. Frame in aerospace stainless steel with Reynolds 953 stainless steel forks. Silver fillet brazed by hand. |
| Front Suspension | Moulton Flexitor® (with adjustable bump-stop and soft lock-out) |
| Rear Suspension | Moulton Hydrolastic® |
| Separability | Fixed frame. Front and rear forks are also easily removed to reduce packing size. |
| Frame Finish | Polished stainless steel |
| Front Carrier | … |
| Rear Carrier | Fits optional ‘Large Rear’ or ‘Pylon Day’ Carrier |
| Colour | N/A |
Specifications
| Gears | 24 |
| Spec | Campagnolo Super Record 12 |
| Gear Type | Derailleur |
| Handlebar | Drop: Cinelli Dinamo 7075 (40 or 42 c-c) |
| Handlebar Stem | Moulton ‘M’ 953 (90,120,150 or 180mm) |
| Handlebar Tape | Brooks rubber |
| Headset | Moulton custom lightweight 1″ sealed |
| Seatpost | 2-bolt forged AL, 27.2×350 |
| Saddle | fi’zi:k Antares |
| Brake Levers | Campagnolo Super Record 11 |
| Gear Levers | Campagnolo Super Record 11 |
| Brakes | DP CNC sidepull 57 (for Moulton) |
| Front Mech | Campagnolo Super Record |
| Rear Mech | Campagnolo Super Record |
| Crankset | Campagnolo Super Record Carbon Ti |
| Bottom Bracket | Campagnolo Ultra-Torque (ceramic) |
| Cassette/Sprocket | Moulton CNC 10-30 12 speed CrMo/Ti/Al |
| Chain | KMC Ti-Nitride |
| Pedals | None supplied |
| Front Hub | Moulton custom forged 28h silver 70mm |
| Rear Hub | Moulton custom forged 28h silver |
| Spokes | Sapim Laser/Force butted (differential) |
| Rims | Moulton MT20, Black, CNC brake track |
| Tyres | Schwalbe One 28-406 (Kevlar bead) |
| Mudguards | … |
| Mudguard Clearance | Up to 28mm tyre section |
| Gear Range (inches) T= Touring, S= Sport | T = 26-99″ (53/39); S = 29-108″ (58/44) |
| Options | Wishbone stem (ahead type) |
