Call for Pricing

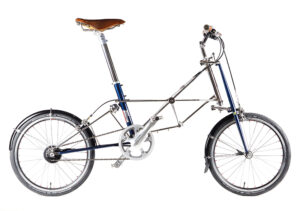

The new generation of comfort and speed, the NS MARATHON features advanced Flexitor® front suspension, Hydrolastic® rear suspension, an extended Reynolds 953 stainless-steel seat post, and a lighter, stiffer, polished stainless steel frame.
Features
| Wheel Size | 20″ |
| Frame | ‘Shot-in’ tube construction in aerospace stainless steel with Reynolds 853 steel forks. Silver fillet brazed by hand. |
| Front Suspension | Moulton Flexitor® (with adjustable bump-stop and soft lock-out) |
| Rear Suspension | Moulton Hydrolastic® |
| Separability | Separates into two halves via removal of kingpin. Front and rear forks are also easily removed to reduce packing size. |
| Frame Finish | Polished stainless steel with painted ‘highlights’ |
| Front Carrier | … |
| Rear Carrier | Fits ‘Large Rear’ or ‘Day’ carrier |
| Colour | Painted highlight colour of choice |
Specifications
| Gears | 24 | 11 |
| Spec | Campagnolo Super Record 11 | Shimano Alfine |
| Gear Type | Derailleur | Hub |
| Handlebar | Drop: Deda Speciale classic drop (44 or 42) | Flat: M special flat bar |
| Handlebar Stem | Moulton Wishbone Q (90, 140 or 160mm) | Moulton Wishbone Q (90, 140 or 160mm) |
| Handlebar Tape | Brooks leather tape | Brooks leather ‘slender’ grips |
| Headset | GB Tange Levin Alloy 1″ thread, sealed | GB Tange Levin Alloy 1″ thread, sealed |
| Seatpost | Moulton 953, layback head | Moulton 953, layback head |
| Saddle | Brooks leather B17 Ti | Brooks leather B17 Ti |
| Brake Levers | Campagnolo Super Record 11 | Tektro FL750 |
| Gear Levers | Campagnolo Super Record 11 | Shimano Alfine rapidfire |
| Brakes | DP CNC sidepull 57 (for Moulton) | DP CNC sidepull 57 (for Moulton) |
| Front Mech | Campagnolo Super Record | N/A |
| Rear Mech | Campagnolo Super Record | N/A |
| Crankset | Campagnolo Super Record Carbon Ti | Shimano Alfine 45t w/chainguard |
| Bottom Bracket | Campagnolo Ultra-Torque (ceramic) | Shimano Hollowtech II |
| Cassette/Sprocket | Moulton CNC 10-30 12 speed CrMo/Ti/Al | 17t |
| Chain | KMC Ti-Nitride | Connex 1/2 x 3/32″ stainless |
| Pedals | MKS Promenade q/r | MKS Promenade q/r |
| Front hub | Moulton custom forged 28h silver 70mm | Moulton custom forged 28h silver 70mm |
| Rear hub | Moulton custom forged 28h silver | Shimano Alfine 11 speed 32h silver |
| Spokes | Sapim Laser/Force butted (differential) | Sapim Laser butted front/PG rear |
| Rims | Moulton MT20, Black, CNC brake track | Moulton MT20, Black, CNC brake track |
| Tyres | Schwalbe One 28-406 (Kevlar bead) | Schwalbe One 28-406 (Kevlar bead) |
| Mudguards | Supplied | Supplied |
| Mudguard Clearance | Up to 28mm tyre section | Up to 28mm tyre section |
| Gear Range (inches) T= Touring, S= Sport | T = 26-99″ (53/39); S* = 29-108″ (58/44) | 25-106″ (45/17) |
| Options | Threadless steering column | Threadless steering column |
