AM GT

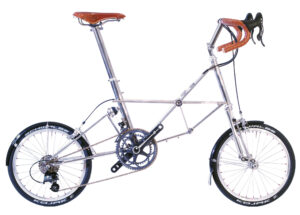

Moulton AM GT

Call for Pricing

The legendary AM GT (Mk III) space-frame, recently updated utilising the latest in ultra-high tensile tubing to form an all-stainless-steel frame and fork. Lovingly crafted, the AM GT is a Grand Tourer in the classical sense and many owners have travelled the world on these beautiful bicycles.

Features

Wheel Size17″
Frame‘Shot-in’ tube construction in aerospace stainless steel. Silver fillet brazed by hand. Columbus XCR seat tube.
Front SuspensionMoulton Leading Link
Rear SuspensionMoulton Hydrolastic®
SeparabilitySeparates into two halves via removal of a kingpin
Frame FinishPolished stainless steel
Front CarrierFits optional ‘Platform’ or ‘Pannier’ carrier
Rear CarrierFits opional ‘Large Rear’ or ‘Day’ carrier
ColourN/A

Specifications

Gears2211
SpecCampagnolo Centaur 11Shimano Alfine
Gear TypeDerailleurHub
HandlebarDrop: Deda Speciale classic drop (44 or 42)Flat: M special flat bar
Handlebar StemMoulton Wishbone Q (90, 140 or 160mm)Moulton Wishbone Q (90, 140 or 160mm)
Handlebar TapeBrooks Leather tape.Brooks Leather (slender) grips.
HeadsetGB Tange Levin Alloy 1″ thread, sealedGB Tange Levin Alloy 1″ thread, sealed
SeatpostMoulton 953, in-line headMoulton 953, layback head
SaddleBrooks Leather B17 TiBrooks Leather B17 Ti
Brake LeversCampagnolo Potenza 11Tektro FL750
Gear LeversCampagnolo Potenza 11Shimano Alfine rapidfire
BrakesCampagnolo Centaur SilverTektro FL750 / Shimano Alfine rapidfire
Front MechCampagnolo Centaur SilverN/A
Rear MechCampagnolo Centaur Silver
N/A
CranksetCampagnolo Centaur Ultra-TorqueShimano Alfine 45t w/chainguard
Bottom BracketCampagnolo Ultra-TorqueShimano Hollowtech II
Cassette/SprocketMoulton 9-3216t 3/32″
ChainConnex 11sXConnex 1/2 x 3/32″ stainless
PedalsMKS Promenade q/rMKS Promenade q/r
Front hubMoulton custom forged 28h silverMoulton custom forged 28h silver
Rear hubMoulton custom forged 28h silverShimano Alfine 11 speed 32h silver
SpokesSapim Laser/Force butted (differential)Sapim Laser butted front/PG rear
RimsMoulton M17, Silver, CNC brake trackMoulton M17, Silver, CNC brake track
TyresSchwalbe Kojak (Kevlar) 32-369Schwalbe Kojak (Kevlar) 32-369
MudguardsSuppliedSupplied
Mudguard ClearanceUp to 32mm tyre sectionUp to 32mm tyre section
Gear Range (inches) T= Touring, S= SportT= 19-99″ (52/36) – standard
S= 23-109″ (58/44) – extra cost
25-103″ (45/16)
OptionsDrop handlebar
