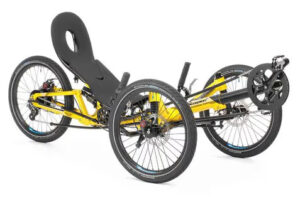

Trike Dynamics Comfortably Balanced: Scorpion fs 20
Discover HP Velotechnik’s Compact Full-Suspension Foldable Touring Trike
It’s good to know, that even if things get rough ahead of you, you can still stay laid back and relaxed. When developing the award-winning design of the Scorpion fs 20 foldable touring trike, HP Velotechnik’s engineers used the latest chassis technology from the automotive sector to provide the most comfortable full suspension for your ride. But they did not compromise by simply using retro-fit solutions on existing frames:
The whole vehicle was developed from scratch to incorporate an impressively sensitive full suspension in a sleek and lean design delivering superior performance. The wishbone axle geometry and HP Velotechnik’s unique Stabilizer System, with its anti-roll bar integrated into the frame design allow full use of the ample suspension travel. It is finely tuned to perfectly respond to the forces of the road. The low seat and far higher pedal position highlight the agile sporty character of the full suspension recumbent trike for adults.
You can feel the benefits of this masterpiece of finest German trike engineering immediately when cutting your first corner: enjoy a perfect synthesis of outstanding road-holding and a maximum of “Fahrvergnügen.”
The Full Suspension Chassis
The Roughest Road Becomes an Exhilarating Ride
Potholes, cobblestones, gravel roads: the condition of your way ahead can be shocking indeed. From now on, you are going to look forward to riding those sweet little challenges. Once you want to leave the beaten track, you need a quick responding suspension, stable road holding, precise steering, and an optimum of steadiness. Now, the full suspension recumbent trike Scorpion fs 20 is your perfect choice.
The comfortable MacPherson front suspension has 6 cm (2.4 inches) of travel and uses a reliable spring and elastomer system. The suspension struts are supported on the far end of the frame’s rigid, large-diameter crossbar close to the wheel. The adjustable wishbones are equipped with maintenance-free bearings.
With this design, our engineers were able to keep unsuspended masses at a minimum, achieving a rapidly responding front suspension action with an astonishingly low weight from 17,5 kg for the fully suspended recumbent touring trike Scorpion fs 20. The suspension preload is adjustable. By exchanging the steel springs and varying the parallelly positioned MCU-elastomer / spacer stack, you can adjust the suspension characteristics, stiffness, and progression to match your personal riding style and needs.
The full suspension recumbent trike’s most unique feature is the beefy wishbone and stabilizer bar system under the cruciform frame. This stops the trike from rolling in corners while preserving its suspension movement. Control at the extreme limits is noticeably improved and tipping safety significantly increased. The AntiDive kinematics prevent the negative dive effects on braking.
The design of the camber and track geometry ensures that the steering mechanism offers straight-line stability over the entire suspension travel and remains easily accessible and free from impairment when braking (brake steer) or traversing obstacles (bump steer). You can feel it immediately: in the precision of the steering, the sporty handling, and the direct feedback from the road.
The entire chassis is designed using our No Squat suspension design and transmits all of your drive energy to the road without any loss of power. In return, you enjoy complete comfort so that you can lean back and relax while dynamically accelerating, even on rocky roads.
Unfolds Pure Driving Pleasure
Immense Traction, Precise Tracking, and Minimal Floor Space: Scorpion fs 20
The Scorpion fs 20 full suspension recumbent trike received the Eurobike Award for groundbreaking design and above-average product quality. The jury of “iF International Design Forum,” comprised of design experts, specialist journalists and sports scientists, rated amongst others: efficiency, ergonomics, practical value, weight, safety, environmental impact aspects, and finish.
For convenient transport, you can easily fold your Scorpion fs 20 within 60 seconds into a package of 112 × 83 × 63 cm length x height x width (44″ x 33″ x 25″, with installed rear rack). After the easy removal of the front fenders and front wheels, the package reduces to only 112 × 74 × 46 cm (44″ x 29″ x 18″); without the rear rack, the length is almost less than 90 cm (36″). For easy carrying around, your Scorpion fs 20 is fixated in its folded position by a frame-side-mounted adjustable snap-in device that safely secures the folded frame.
The best part: When you unfold the trike, HP Velotechnik’s unique, self-locking folding hinge enables you to turn your excited anticipation into pure riding pleasure quickly!
Facts and Figures
Specifications and Technical Data
The outstanding ride of the full suspension adult trike is the result of thoroughly engineered performance technology with precise technical specifications. The detailed figures can be found here in the technical data sheet – from the dimensions to the payload, from the seat height to the appropriate rider size. And of course, we are also happy to show you which colors you can choose for your Scorpion fs 20 trike.
|Seat hight BodyLink||29 cm (12″)|
|Seat height ErgoMesh||32 cm (13″)|
|Seat height ErgoMesh HS plus||43 cm (17″)|
|Seat angle||41–49° adjustable|
|Seat angle ErgoMesh HS||41–54° adjustable|
|Wheel size (front wheel)||20″ (ISO 406)|
|Wheel size (rear wheel)||26″ (ISO 559)|
|Max. tire width||5 cm (2″)|
|Bottom bracket height||40–45 cm (16–18″)|
|Ground clearance||12 cm (5″, statically compressed)|
|Wheelbase||128 cm (44″)|
|Track width||78 cm (31″)|
|Width||83 cm (33″)|
|Length||172–206 cm (68–81″)|
|Turning circle||4.76 m (15.6′) outward|
|Folded size||90 × 83 × 63 cm (36 x 33 x 25″, without rear rack)|
|Dismantled size||90 × 74 × 46 cm (36 x 29 x 18″)|
|Standard color||Colza yellow, Blue shade grey matt|
|Bottom bracket standard||BSA 68 mm|
|Suspension travel||front 6 cm (2.4″) / rear 8 cm (3.1″)|
|Weight||from 17.5 kg (39 lbs) incl. pedals|
|Payload||max. 130 kg (286 lbs)|
|Frame material||Aluminum 7005 T6 heat treated|
|Swing arm bearing||maintenance-free|
|Rider height||ca. 1.62 – 2.00 m (5’4″ – 6’7″)|
