The for-anything-and-anytime-bike: be it tandem, family taxi, or cargo bike

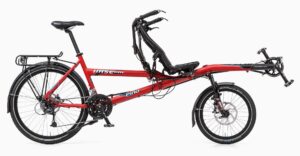

The PINO ALLROUND is the perfect bike for cycling duos – and for anything you need to carry from A to B.
The tandem: comfort and fun for cycling duos
As a tandem, the PINO offers unprecedented comfort and an exhilarating ride. With its short wheelbase, it is almost as maneuverable as a single-seater. Furthermore, the positions of the recumbent seat and saddle allow for a stronger sense of shared experience, because the riders can communicate effortlessly without having to raise their voices. Furthermore, both riders can enjoy an unrestricted, panoramic view, and there is plenty of space for carrying luggage.
The family taxi: Children’s Crankset mounted in a flash
The PINO can also be converted to accommodate younger riders in the front seat, making it the perfect family taxi. All you need is the Children’s Crankset, which can be mounted to the PINO’s front boom in less than two minutes. This accessory also makes it possible to use the PINO as a parent-child touring tandem. And pedaling breaks are no problem at all: the front rider has a freewheel.
The cargo bike: carry home your weekly shopping with the PORTER BAG and RACK
Converting the tandem to a cargo bike is a piece of cake. With a capacity of 80 to 120 liters, the PORTER BAG on the front seat can even handle a week’s worth of groceries. When not in use, it can be quickly and easily folded up and stowed behind the seatback.
The PORTER RACK, which is mounted under the seat, has a similar cargo capacity. And its low center of gravity guarantees extremely safe and stable handling, even when the bike is fully loaded. The additional RACK BAG keeps the cargo dry. As a special feature of the cargo set: the PORTER Kickstand provides rock-solid stability when the PINO is parked.
Easy transport thanks to two-part frame
It only takes a few short minutes to open the PINO’s frame joint. Then the two frame halves will fit into practically any compact car. And once you’ve reached your destination, the tandem can be reassembled in a flash.
- Very agile, smooth-riding
- Excellent safety and stability thanks to low center of gravity
- Full suspension
- Usable in tandem and as a trailer
- E-motor option
|Total length||83″-93″ (210-237 cm)|
|Total width||25″ (64 cm)|
|Total height||41″-43″ (104-110 cm) depending on seat adjustment|
|Seat height, front||25″ (64 cm)|
|Bottom bracket height, front||24½“- (62 cm)|
|Wheelbase||57″ (145 cm)|
|Two-part frame/front boom||7005 aluminum, with adjustable and replaceable dropouts in the rear (Patria patent)|
|Max. load||495 lb (225 kg)|
|Fork||Suspension fork Spinner Grind 1, reinforced version with steel shaft|
|Brakes||SRAM Guide hydraulic disc brakes|
|Wheels||Rear: 26″, Rim: double wall with double eyelets, Hub: HASE BIKES Tandem Hub, Spokes: Sapim; Front: 20″, Rim: double wall with eyelets, Hub dynamo: Shutter Precision, Spokes: Sapim, Tires: Schwalbe Marathon 47×406 (front), 50×559 (rear)|
|Gears||Shimano Deore 27-speed derailleur, Front derailleur: Microshift FD-R539 cold-forged, Microshift bar-end shifters and Herrmans Ergo grips|
|Crankset/bottom bracket||HASE BIKES crankset for tandem with integrated freewheel mechanism, Rear: 170 mm 28-38-48 tooth, left 36 tooth; Front: 165 mm 38 tooth|
|Lighting System||Hub dynamo: Shutter Precision, Taillight: B & M Toplight Flat Plus, Headlight: AXA Pico 30-T Steady Auto, LED, standlight|
|Fenders||SKS black matte|
|Luggage Rack||Racktime Addit, Max. load: 66 lb. (30 kg)|
|Kickstand||Humpert double kickstand|
|Weight||55 lb (25 kg)|
|Colors||RAL 3002 Carmine Red matt/powder-coated, front boom black anodized with length-adjustment markings|
