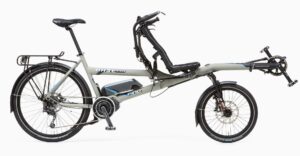

PINO STEPS with Shimano motor: as versatile as a whole fleet of vehicles
Cargo bike, family taxi, tandem: with too much CO2 in our atmosphere and not enough parking spots in our neighborhoods, the PINO STEPS is the perfect e-vehicle for the city.
Semi-recumbent tandem as smart bike for the city
How can the groceries get home, your family get to the park, or a couple get to their favorite picnic spot? On the PINO STEPS, of course! The e-tandem from Hase Bikes takes you quickly from A to B in an environmentally friendly way, and lets you easily bring along all kinds of cargo. Or your favorite co-pilot.
The powerful mid-motor from Shimano can be switched on with the touch of a button when the hill’s too steep, or the will too weak. The battery has a capacity of 418 watts and can be charged in 4 hours.
PINO as cargo bike: let the good times roll!
The colorful City Bag brightens up the concrete jungle and easily carries all your stuff, transforming the PINO into a cargo bike with an attitude. The City Bag slides over the backrest of the recumbent seat and hooks onto the frame in front. Up to 80 liters (2.8+ cubic feet) of cargo can be packed away in this attractive, sturdy, and waterproof “trunk.”
The robust Porter Rack below the bag is a foldable luggage carrier that doubles as a sturdy two-legged kickstand, adding even more load-carrying capacity: e.g. for that case of ginger beer or an XXL watermelon for the neighbors’ shindig.
PINO as family taxi: I’m front and center!
It’s also fine for kids to ride in a wooden crate, either alone or sandwiched between the organic leeks and baguettes. But as we see it: kids aren’t cargo. And they have much more energy to burn than a loaf of bread. That’s why the PINO keeps kids and cargo separate and offers a Children’s Crankset that turns petite passengers from 3’3″ in height into active co-pilots – attracting envious stares from their trailer-bound peers.
After burning up all that energy, your tired stoker might just need a little nap. Which is fine, thanks to the freewheel and three-point harness. After all, Daddy has the Shimano motor as a backup, just in case he can’t handle the pedaling on his own.
A PINO built for two: Daisy, Daisy…
The old fashioned “bicycle built for two” was never as romantic as it sounded in the songs. How could poor “Daisy” give her answer while staring at the back of her beloved’s head and trying to keep pace with the pedaling? Thanks to the two different seat heights on the PINO, the stoker in the front recumbent seat can share the beautiful view – and pleasant conversations – with the captain.
No road is too long when you share the experience. The Shimano will help you get there, and the Rack Bag under the recumbent seat lets you bring along all the provisions you need!
- Recumbent-upright combination makes communication easy
- Unrestricted view for both riders
- Freewheel in front – ideal for families and special needs
- Excellent maneuverability thanks to short wheelbase
- Two-part frame
|Total length||83″-93″ (201-237 cm)|
|Total width||25″ (64 cm)|
|Total height||41-43″ (104-110 cm), depending on seat adjustment|
|Seat Height, front||25″ (64 cm)|
|Bottom bracket height, front||24.5″ (62 cm)|
|Wheelbase||57″ (145 cm)|
|Two part frame/front boom||7005 aluminum, with adjustable and replaceable dropouts in the rear (Patria patent)|
|Max Load||495 lb (225 kg)|
|Fork||Suspension fork Spinner Grind 1, reinforced version with steel shaft|
|Brakes||SRAM Guide hydraulic disc brakes|
|Wheels||Rear: 26″, Rim: double wall with double eyelets, Hub: Novatec D142SBT, Spokes: Sapim; Front: 20″, Rim: double wall with eyelets, Hub: HASE BIKES, Spokes: Sapim; Tires: Schwalbe Marathon 47×406 (front), 50×559 (rear)|
|Gears||Shimano Deore 9-speed derailleur, Microshift bar-end shifters and Herrmans Ergo grips|
|Crankset/bottom bracket||Shimano Steps and HASE BIKES with integrated freewheel mechanism, Rear: 170 mm 44 tooth, left 38 tooth; Front: 165 mm 38 tooth|
|Lighting System||Motor battery, B & M Toplight Flat Plus, Headlight: Busch & Müller Lumotec Lyt, LED, standlight|
|Fenders||SKS black matt|
|Luggage Rack||Racktime Addit, Max. load: 66 lb (30 kg)|
|Cargo system (optional)||City Bag, Volume: 80 L, Max. load: 88 lb (40 kg); PORTER RACK foldable carrier with double kickstand, Max. load: 88 lb (40 kg); PORTER RACKBAG (waterproof), Volume: 80 L|
|Motor||Shimano Steps bottom bracket motor, Battery: lithium-ion, Capacity: 11.6 Ah, 418 Wh, Voltage: 36 V, Max. power: 250 W, Recharge cycles: 1000, Charge time: 4 h, Range: approx. 31 miles (50 km), Battery weight: 7 lb (2.55 kg), Battery guarantee: 24 months,|
|Kickstand||Humpert double kickstand|
|Weight||68 lb (31 kg)|
|Colors||RAL 7023 Concrete Gray/powder-coated, front boom black anodized with length-adjustment markings|
