Dumont

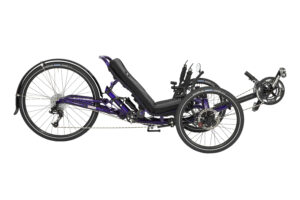

Catrike Dumont

Available as a Bosch equipped eCAT

$4350

Catrike’s 16 years of engineering and experience have come together to create the Dumont. The rear suspension features a highly progressive travel path combined with a custom spring rate and sophisticated damping for a perfect balance of performance and comfort. The shock is actuated via a CNC machined swingarm pivoting on precision cartridge bearings to allow the suspension system to operate with seamless efficiency. Up front, the Dumont employs Catrike’s patented anti-dive front suspension spindles to take the edge off while allowing all wheels to move independently. The result is that the Dumont stays firmly planted on the ground with the active suspension. The long and low rider position and fully adjustable boom provide stable weight distribution needed for maximum performance while the ergonomic backrest is fully adjustable for the perfect fit. A 26-inch rear wheel and folding feature, round out the Dumont to provide the ultimate ride.

Features

  • Padded seat
  • Ergonomic adjustable seat back
  • Roller wheels for rolling when folded
  • Padded wrist rests
  • Rear Fender
  • Flag Mount & Flag
  • Mirrycle Rear View Mirror
  • Multi Purpose Clipless Pedals
  • Computer Sensor Mount
  • No Brake Steer
  • Self Centering
  • Ackermann Steering Compensation
  • Structural Front Boom
  • Quick-Release Indexing Boom Clamp
  • Aluminum Rod Ends
  • Low Friction PTFE Flared Chain Tube
  • 12×142 Thru Axle

Components

BrakesAvid BB7 Disc Brakes
Brake LeversCatrike Locking Brake Levers
Front DerailleurMicroshift Triple
Rear DerailleurSRAM GX 10 Speed
ShiftersSRAM 500 TT Bar End Shifter
CranksetFSA Gossamer Pro Triple
Bottom BracketFSA Road MegaExo
Chainrings30/39/52
Chain GuardFSA Guard
CassetteSRAM 11/36 10 Speed
ChainKMC
IdlerTerraCycle Sport Power Idler 15T
HeadsetsFSA Zero Stack
Front Tires406 Schwalbe Marathon Racer
Rear Tire559 Schwalbe Marathon Racer
 * All components are subject to change with an equivalent substitute based on availability

Frame and Geometry

USmetric
Folded Length45.25 in1149 mm
Folded Width32.5 in825 mm
Folded Height25 in635 mm
Total Length**82 in2083 mm
Total Width32.5 in826 mm
Total Height28 in711 mm
Wheel Base45.5 in1156 mm
Wheel Track29.5 in749 mm
Seat Angle42-49 deg
Weight*43 lb19.5 kg
Seat Height10 in254 mm
Seat Width14 in356 mm
BB Height**16.5 in419 mm
Ground Clearance4 in102 mm
Height w/ Seat Folded26.5 in673 mm
Turning Circle18 ft5.49 m
Turning Radius9 ft2.74 m
Rider Weight Limit275 lbs125 kg
Rider X-Seam Range39-46 in99-117 cm
Front Suspension Travel0.5 in12.7 mm
Rear Suspension Travel2 in 50 mm
*weight with all standard components and accessories including pedals, padded seat, mirror, etc.
 **varies accordingly to rider height.
